Toughened glass hinge panel and gate panel

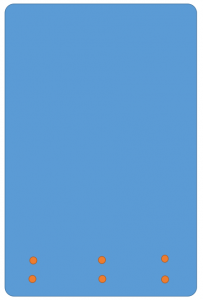

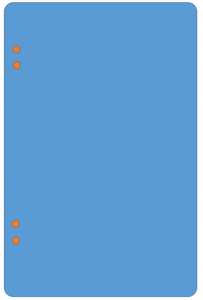

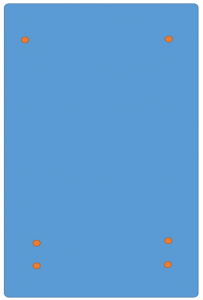

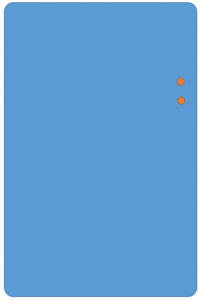

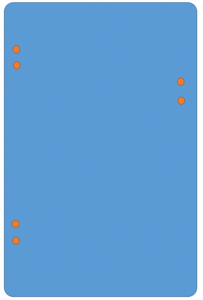

Gate Panel These glass come pre-drilled with the required holes for the hinges and lock. We can also supply gates made to a custom size if required. Hinge Panel When hanging a gate from another piece of glass you will require this to be a hinge panel. The hinge glass panel comes with the 4 holes for the gate hinges drilled to the correct size in the correct positions. We can also supply custom size hinge panels if required.

The hinges panel glass or gate glass panel can be Clear tempered glass, clear tempered laminated glass, frosted tempered glass, etc. Edge: Perfectly polished and blemish free edges. Corner: Safety Radius corners eliminate the safety hazard of sharp corners.All of glass has 2mm-5mm safety radius corners. Packing Specification: Holes and hinges : All cutout holes and hinges by waterjet cutout to Ensure the accuracy of the hole position and hinge position

12mm Toughened Glass Gate Panel,hinge panel
Float glass grade	A grade
Thick tolerance	±0.2mm
Application	Pool fence ,Deck fence
Shape	Rectangle,Irregular,Square,Trapezoid,triangle
Edge	Flat edge polished ,round safety corner
Min order	100M2
Custom size	Yes
Trademark	LYD GLASS
Customized logo	Yes
Packing	Cork mat mat between the glass
Transport Package	Safety Plywood Crates Packing or Steel frame
Customized packaging	Yes
Origin	Qinhuangdao,China
Port:	Qinhuangdao Port or Tianjin port
Price	FOB or CIF
Payment Terms:	T/T
Warranty:	2-10 Years
Type:	Tempered
Supply Ability	Supply Ability: 75 tons per day
Lead Time:	Within 15 days after confirming order
Certificate or test report:	CAN CGSB 12.1-M90, CE EN-12150 EN572-8,ANSI Z97.1 ,16CFR 1201-II
